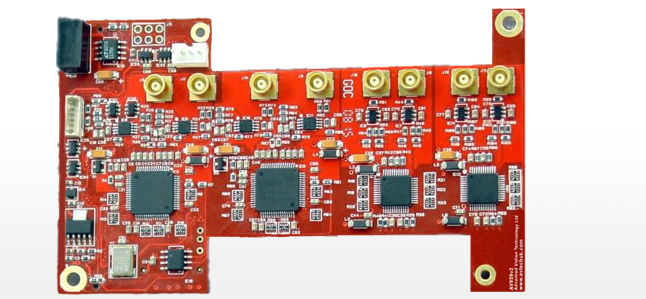

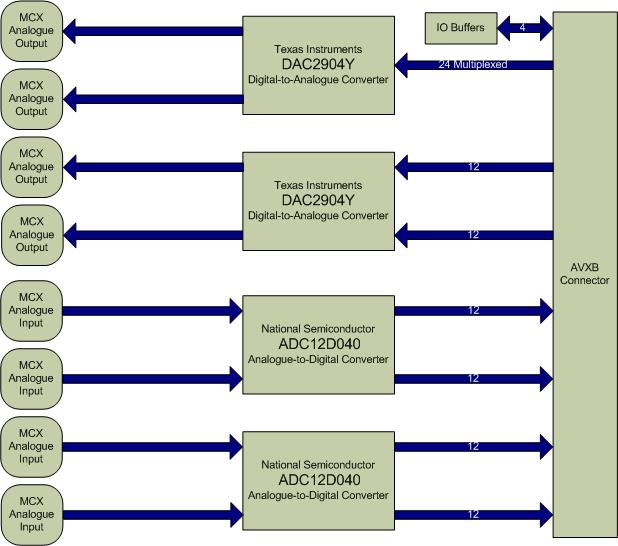

The AV959 is a Quad ADC and Quad DAC interface AVXB expansion card. The module combines four analogue-to-digital channels capable of converting analogue inputs into 12Bit digital words up to 40Msps and four digital-to-analogue channels capable of converting 12/14Bit digital inputs words up to 125Msps . Features • National Semiconductors ADC12D040 ADC. • Texas Instruments DAC2904Y DAC. • 12Bit 40MSPS ADC operational. • 14Bit 125MSPS DAC operational. |
 Click to view full image in new window |
|||||||||
